Electric High-Lift Tipper

Beast Lx

183 KM range. 750 KG payload. High-lift tipper. Lift higher, dump faster, work smarter — built for SWM and municipal waste collection.

Ex showroom price
₹5,10,000
Get a Quote Call Us Now
183km
Max Range
750kg
Payload
18%
Gradeability
Beast LX Tipper ND
183km
Max Range
750kg
Payload
18%
Gradeability
10kw
Peak Power
Beast LX Tipper ND
Electric High-Lift Tipper

Zero fuel. 750 KG payload. High-lift tipper — purpose-built for SWM, municipal waste collection and heavy commercial operations.

Call Us +91 96008 09197 Download Brochure
Beast LX Tipper ND Features
Lift Higher.
Dump Faster.
High-Lift Tipper Mechanism
Powerful hydraulic high-lift tipper. Designed for quick, efficient solid waste dumping — lift higher, dump faster than standard tippers.
183 KM Long Range
15.5 kWh LFP battery, IP67 waterproof, 5-year warranty. Charge in 4.5 hours. Run full municipal collection shifts.
750 KG Real Payload
1100 KG GVW. Tipper box 5.41 × 4.40 × 3.03 ft — 46 cu.ft. Built for SWM, municipal and heavy commercial daily operations.
SWM & Municipal Ready
Purpose-built for ULB solid waste management, door-to-door waste collection and municipal contracts across Tamil Nadu.
18% Gradeability
Full 750 KG payload on steep roads. Helical spring + damper + hydraulic shock absorber front suspension system.
Zero Emission Certified
No exhaust, no pollution. PMSM motor IP65 rated. 5-inch LCD display. AMC service support across Tamil Nadu.

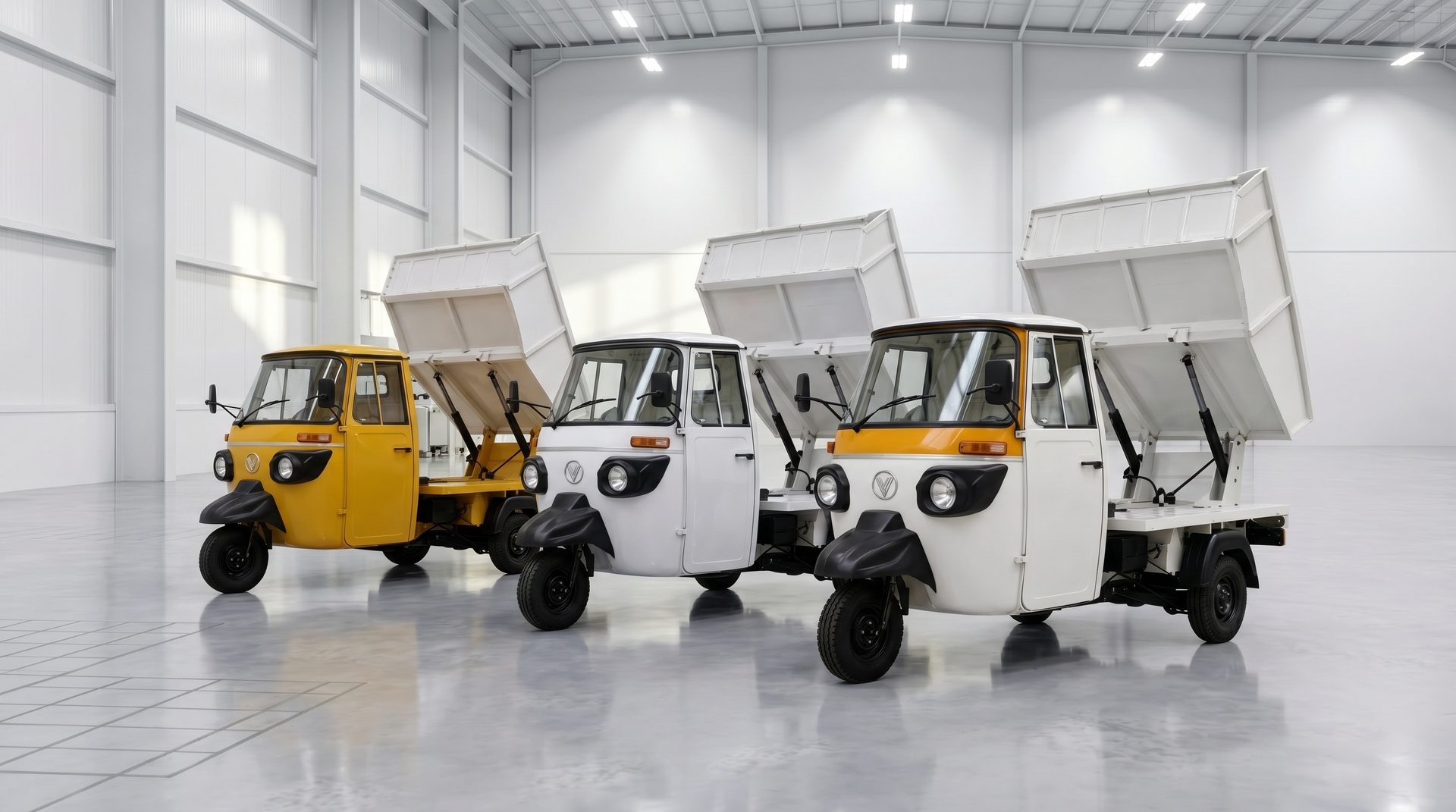

Beast LX Tipper ND side view
Battery & Power
LFP Power.
183 KM Range.

15.5 kWh LFP battery, IP67 waterproof, 5-year warranty. On-board CC-CV charger. 4.5 hours to full charge — run full day shifts.

210km
Max Range
4hrs
Charge Time
5yr
Warranty
Tipper & Build
High-Lift.

Metal tipper box. 5.41 × 4.40 × 3.03 ft. 46 cu.ft. volume. Hydraulic high-lift mechanism. Powder coating, 4-layer wiring harness. 220 mm ground clearance.

1100kg
GVW
Metal
Body

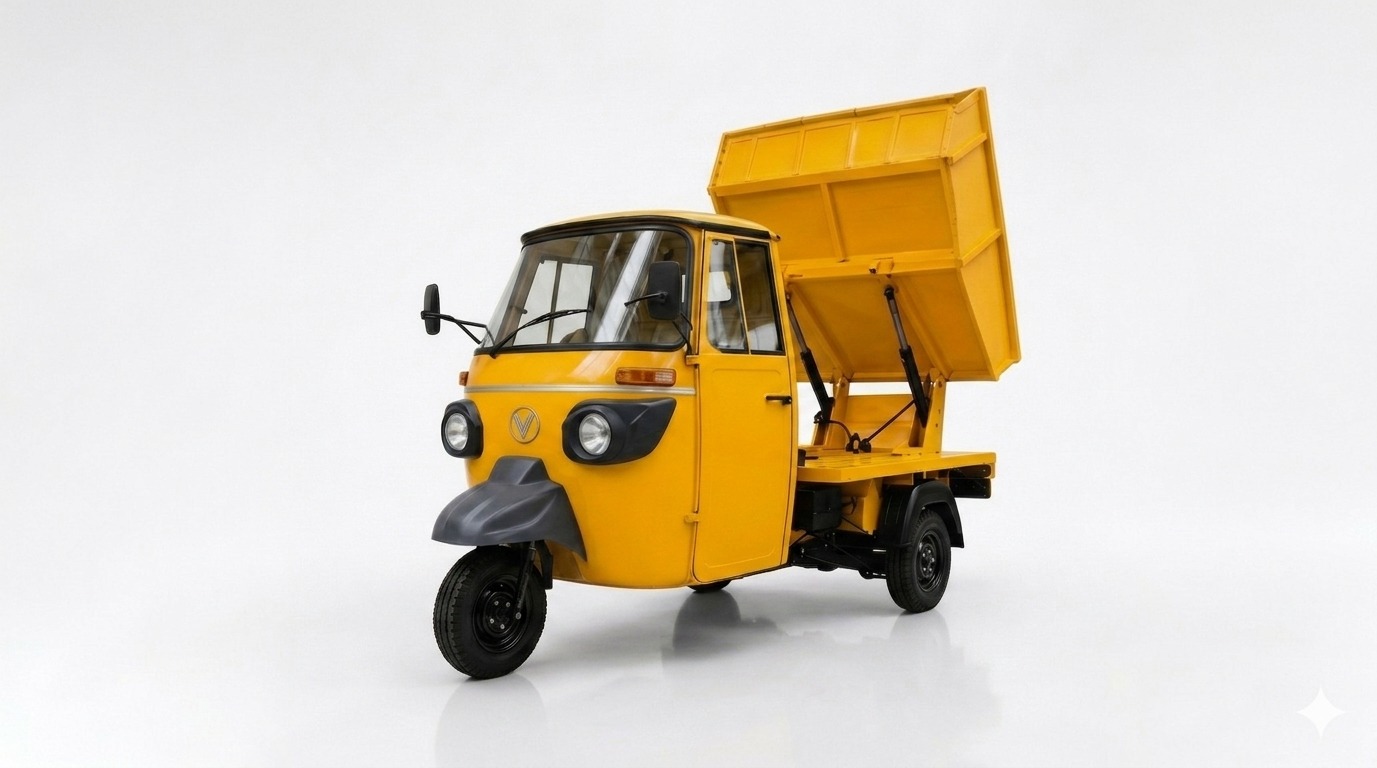

Beast LX Tipper ND tipper raised
Beast LX Tipper ND
Choose Your Colour
Pearl White
Sunrise Yellow

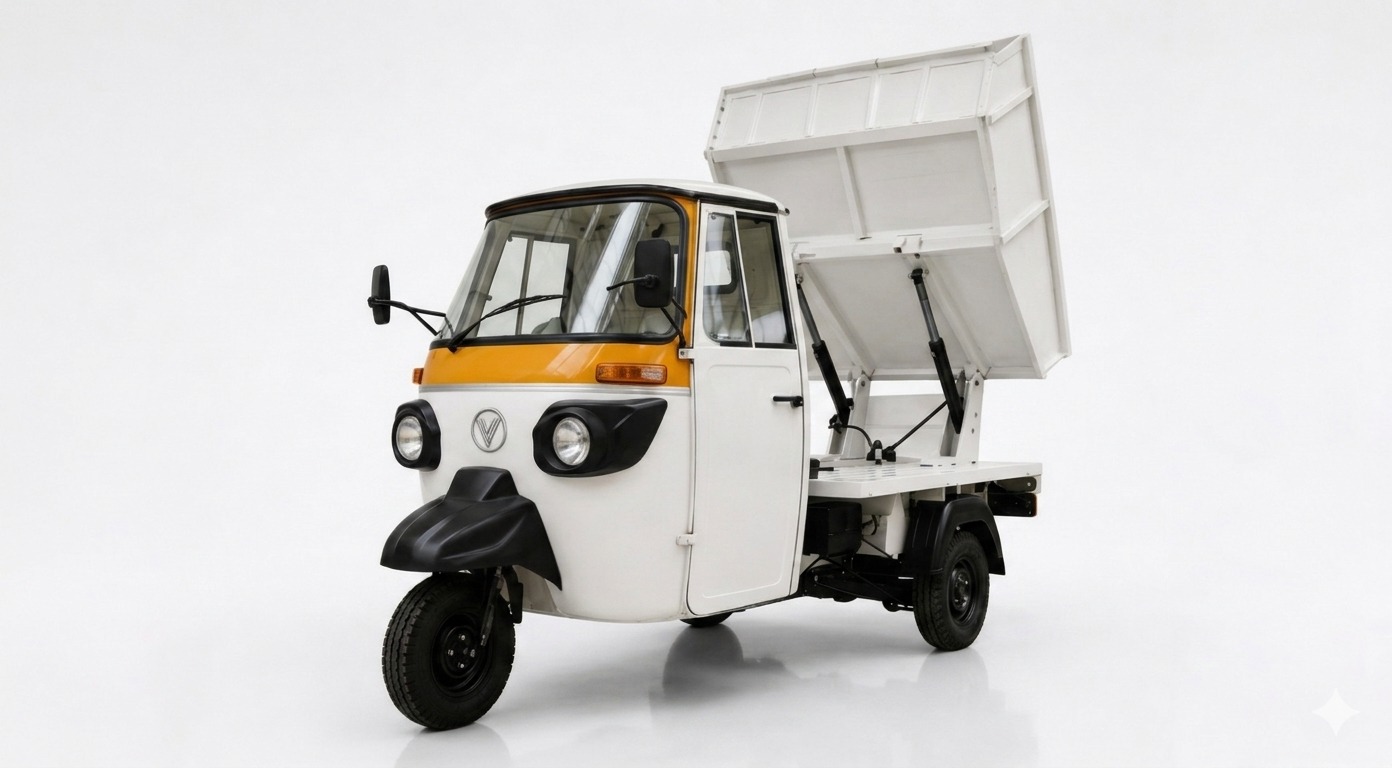

Beast LX Tipper ND Pearl White
Pearl White
Want a specific colour? Mention it in your enquiry →
Beast LX Tipper ND
Full Specifications
183km
Max Range
750kg
Payload
10kw
Peak Power
18%
Gradient
50kmh
Top Speed
46cuft
Tipper Volume
Vehicle
Seating1
GVW1100 kg
Real Payload750 kg
Gradeability18%
Top Speed50 km/h
TransmissionDifferential
Display5-inch LCD Digital
Battery
TypeLFP 51.2 V
Mid-Range11.7 kWh — 126–148 KM (5 Yr)
Long-Range15.5 kWh — 156–183 KM (5 Yr)
Waterproof RatingIP67
Charge Duration4 Hrs (Mid) / 4.5 Hrs (Long)
ChargerOn-Board CC-CV — 48V 30A / 50A
Motor
TypePMSM
Nominal Power5 KW
Peak Power10 KW
Waterproof RatingIP65
Tipper Box & Dimensions
Overall Length3150 mm
Overall Width1530 mm
Overall Height1737 mm
Ground Clearance220 mm
Tipper Box5.41 × 4.40 × 3.03 ft (L×W×H)
Tipper Volume46 cu.ft. / 1.31 cu.m
BodyMetal — Powder Coating
Wiring Harness4-Layer Protection
Warranty
Battery3 to 5 Years
Vehicle1 Year
